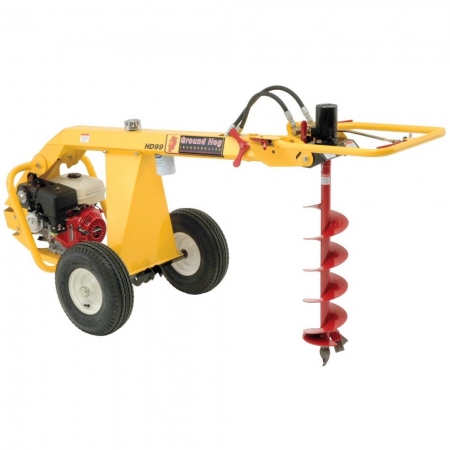

Auger, 8hp Hydraulic Tow Behind

$78.00

GROUND HOG HD99

SKU: 04-01 Category:

Description

Minimum (Hours): $58 (4)
Per Day: $78
Per Week: $300
Per Month: $675

Bit Not Included

Auger Speed 140 rpm @ 3600 engine rpm (no load)
Auger Torque 275 ft. lbs. torque (approximate)
Maximum Depth Depends on length of Auger
Weight 295 lbs. (134 kg) (with fluids)
Length Normal Drilling 100 inches(253 cm)
Length Close-up Drilling 75 inches (190 cm)
Width 34 inches (86 cm)
Height 38 inches (96 cm)

– Variable speed, Forward and Reverse auger rotation

– Three handlebar positions; two for normal drilling and one for close up drilling and towing

– Drilling head pivots from side to side for drilling on uneven terrain

– No torque to the operator

– Engine frame swivels to keep engine level for optimum performance

– Replaceable steel bushing at pivot points

– Auger locks up out of the way for easy maneuvering

– Durable powder coated finish

– Large 5.70×8 pneumatic highway rated tires for easy maneuvering and towing

– Towable. Includes tow bar with 2” hitch coupler

– 9hp (6.75kw) Honda or Subaru engine

– 275 ft. lbs. of torque and 140 rpm approx. max. auger speed

– 6 gpm pump

– High pressure hydraulic swivels for free digging head movement and longer hose life
